PIP releases 30-100V SG MOSFET,Using most advanced SG technology and perfect structure design, to realize the maximum power density and reduce the Conduction power loss.Meanwhile, wafer cell currency becomes more smooth and stable; lower Qgd reduces the switching power loss. These advantage parameters make devices get higher performance in the SR of UPS, inverter, AC/DC and motor driver etc.

    30V、60V、100V SG MOSFET are under mass production with package of TO-220、TO-251、TO-252、PowerPAK5*6、SOP8 etc, meeting RoHS Standard.

    Features:

    ◆low FOM(Rdson*Qg)

    ◆high reliability

    ◆Low Qg

    Application:

    ◆UPS, Inverter

    ◆AC/DC SR

    ◆Motor Driver

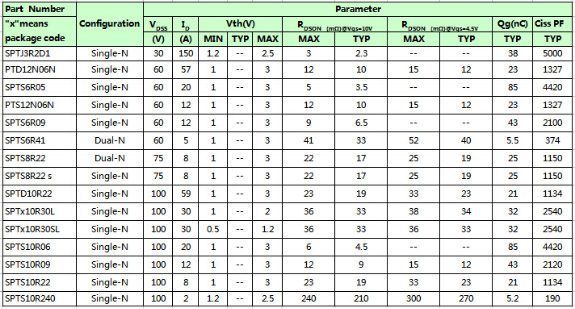

    Specification：
