PIP Releases 80~150V Advanced Trench MOSFET. Using advanced trench process and power package design technology, to promote package temperature dissipation capability and maximum power density. Conduction power loss reduced along with EAS enhanced.

    Features:

    ◆Low Rdson

    ◆High reliability

    ◆High EAS

    Application:

    ◆UPS, Inverter

    ◆E-bike controller (12/15/18/24/36)

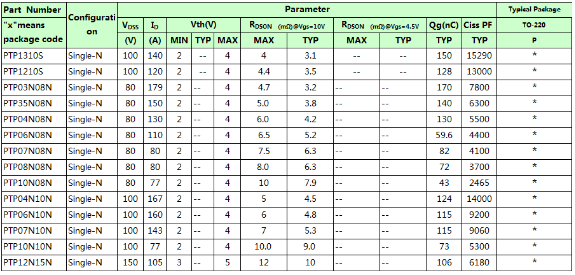

     Specification: (used in 48V/60V/64V/72V/96V E-bike controller)


MOSFET used in E-Bike 100% pass HTRB&HTGB reliability test.
Under conditions:
environment temperature  175℃;
VDSS 80%,
VGS 100%;
1000 hours,
77*3 pcs.
